Our supplier for the following clamp parts has ceased operations.
If you know of another source we would really like to continue offering these items, send us an Email.

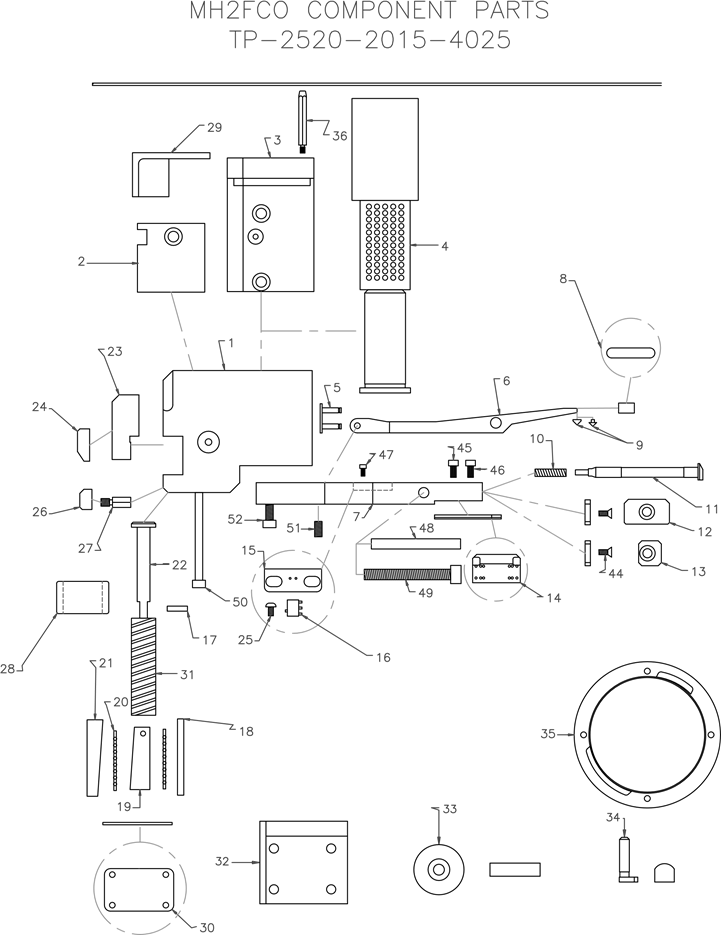

| Dwg No. | Part No. | Description | Price |
| 00 | MH2FCO | Clamp 1 | NLA |
| 00 | MH2FCO-2 | Clamp 2 | NLA |
| 00 | MH2FCO-3 | Clamp 3 | NLA |
| 1 | MH2FCP-19 | Ram (With Bushing) | NLA |
| 2 | MH2FCP-29L | Locking Cylinder Assembly | NLA |
| 3 | MH2FCP-29 | Cylinder Assembly | NLA |
| 4 | MH2FCP-34 | Bearing Assembly | NLA |
| 5 | MH2FCP-36 | Coupling Link | NLA |
| 6 | MH2FUJ | Upper Jaw | NLA |
| 7 | MH2FPA | Lower Clamp 1, 2, or 3 | NLA |
| 8 | MH2FUB | Urethane Boot | NLA |
| 10 | MH2FCP-04DS | Detector Sp. Spring | NLA |
| 11 | MH2FCP-DS | Detector Spindle | NLA |
| 12 | MH2FCP-32 | Plate 2 | NLA |
| 13 | MH2FCP-32S | Plate 1 | NLA |
| 14 | MH2FLJ | Bottom Plate 1, 2, or 3 | NLA |
| 15 | MH2FCP-51 | Holder for Limit Switch | NLA |
| 16 | MH2FCP-DSMS | Micro Switch | NLA |
| 17 | MH2FCP-37P | Spring Cotter/Roll Pin | NLA |
| 18 | MH2FCP-FP | Front Piece | NLA |
| 19 | MH2FCP-LP | Locking Piece | NLA |
| 20 | MHFCP-SB | Slide Bearing | NLA |
| 21 | MH2FCP-BP | Back Piece | NLA |
| 22 | MH2FCP-03 | Drawbar | NLA |
| 23 | MH2FCP-SP | Stop Plate | NLA |
| 24 | MH2FCP-08 | Adapter Plate | NLA |
| 25 | MHSCS2X10 | Screw pkg. of 10 | NLA |
| 26 | MH2FCP-08B | Adapter Plate | NLA |
| 27 | MH2FCP-LS | Limit Screw | NLA |
| 28 | MH2FCP-53 | Wear Insert for Our Clamps | NLA |
| 29 | MH2FCP-54 | Cover | NLA |
| 30 | MH2FCP-20 | Cover Bottom Plate | NLA |
| 31 | MH2FCP-04 | Spring | NLA |
| 33 | MH2FCP-52 | Hold Down Pad *No Longer Available* | NLA |
| 34 | MH2FBP-3.5P | Bearing Plate Pin | NLA |
| 35 | MH2FBP-3.5 | Bearing Plate | NLA |
| 36 | MH2FDP | Detector Pin | NLA |
| 44 | MHSFS04X10 | Screw Pkg. of 10 | NLA |
| 45 | MHSCS05X12 | Screw Pkg. of 10 | NLA |
| 46 | MHSCS05X16 | Screw Pkg. of 10 | NLA |
| 47 | MHSCS04X08 | Screw Pkg. of 10 | NLA |
| 48 | MH2FCP-27 | Dowel for Our Clamp | NLA |
| 49 | MHSCS08x60 | Screw AH | NLA |
| 50 | MH6MCP-23 | Screw | NLA |
*Prices and Availability are Subject to change 01/28/2020
